1500VDC 15-25A 10x65mm PVFG-(amps)A150

PVFG Series 1500Vdc 10x65mm

Class of Operation: gPV

Rating:

69计划房彩票Amps: 15-25A

69计划房彩票Volts: 1500Vdc

Interrupting Rating: 69计划房彩票30kA@1500Vdc

Standards/Approvals for Reference:

² 69计划房彩票Approvals UL 248-19 Listed（2579）；

² 69计划房彩票Environmental RoHS Compliant REACH

² Body: Fiberglass

² Terminations: Tin Plated Copper Caps

Description: CHNBEL series of 10x65 mm, 1500Vdc PV fuses are for protecting and isolating photovoltaic strings, are applied in combiner boxes, inverters.

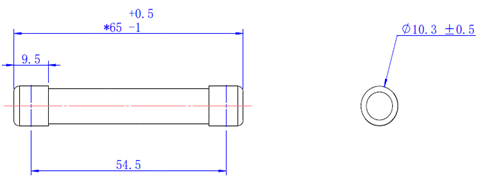

Dimensions(mm)

Catalogue Numbers

Amperage	ORDERING NUMBER	VOLTAGE	INTERRUPTING RATING		WATTS LOSS AT 80% RATED CURRENT（W）	WATTS LOSS AT 100% RATED CURRENT（W）	MELTING I2t (A2s) (1500Vdc)	TOTAL CLEARING I2t (A2s) 30 kA (1500Vdc)	Approvals
Amperage	ORDERING NUMBER	DC	AC	DC	WATTS LOSS AT 80% RATED CURRENT（W）	WATTS LOSS AT 100% RATED CURRENT（W）	MELTING I2t (A2s) (1500Vdc)	TOTAL CLEARING I2t (A2s) 30 kA (1500Vdc)	TUV	UL
15	PVFG-15A150	1500	-	30kA	1.30	2.20	120	405	●	●
20	PVFG-20A150	1500	-	30kA	1.80	3.10	230	960	●	●
25	PVFG-25A150	1500	-	30kA	2.40	5.00	340	1450	●	●
