PV14-(amp)A15 1500Vdc 14x51mm
Class of Operation: gPV
Rating:
Amps: 5-32A
69计划房彩票Volts: 1500Vdc
Interrupting Rating: 69计划房彩票30kA@1500Vdc
Standards/Approvals for Reference:
² UL listed: JFGA.E365873;
² 69计划房彩票REACH declaration available upon request;
² CE;
² RoHS compliant.
Description: CHNBEL series of 14x51 mm, 1500Vdc PV fuses are for protecting and isolating photovoltaic strings,
69计划房彩票are applied in combiner boxes, inverters.

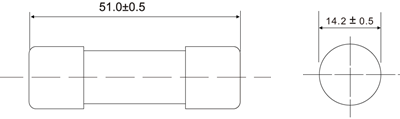

Dimensions(mm)
Catalogue Numbers
Items | Catalogue Numbers | Electrical Characteristics | |||||
Rated Current RMS-Amps | I²t (A²Sec) | Watts Loss | |||||
Pre-arc | Clearing at 1500V | 0.8In | 1.0In | ||||
1 | PV14-5A15 | 5 | 12 | 43 | 0.95 | 1.3 | |
2 | PV14-8A15 | 8 | 30 | 93 | 1.1 | 2.2 | |
3 | PV14-10A15 | 10 | 50 | 152 | 1.6 | 3.3 | |
4 | PV14-12A15 | 12 | 67 | 215 | 1.8 | 3.8 | |
5 | PV14-15A15 | 15 | 89 | 265 | 2.1 | 4.0 | |
6 | PV14-20A15 | 20 | 89 | 568 | 2.7 | 5.0 | |
7 | PV14-25A15 | 25 | 183 | 943 | 2.7 | 5.1 | |
8 | PV14-30A15 | 30 | 304 | 1740 | 3.3 | 6.2 | |
9 | PV14-32A15 | 32 | 318 | 1795 | 3.5 | 6.3 | |
