Specifications
ØVoltage Rating: 250V/125V/100V/72V/63V/32Vdc
ØAmperage Rating: 20-100A
ØSize: 4.5*4.5*12.4mm
Applications
▷PC server and Telecom systems
▷ Power Supplies
▷LCD TV inverter boards DC input protection
▷ High end servers / Blade computing
▷ Base station power supply
▷ Voltage regulator module
▷Cooling fan system for PC Server
▷Battery Management System (Industrial Tools)
▷ ATCA applications for cloud computing
▷Uninterruptible Power Supply (UPS)/3-Phase
▷PC server and Telecom systems
▷ Blade Servers
▷Lithium Battery，Rechargeable
▷ LCD TV inverter boards DC input protection
▷Routers Bicycle
Agency information
File Number: E365879, Guide JDYX2/JDYX8
Product Characteristics
▷ Low voltage drop
▷ High Reliability Solder less Fuse
▷ High pulse resistance
▷ Lead-free--compatible with lead-free solders
▷ And higher temperature profiles
▷ Halogen-free and RoHS compliant
▷ UL Recognized to UL248-1
▷ Indicates compliance with Low-Voltage and RoHS Directives

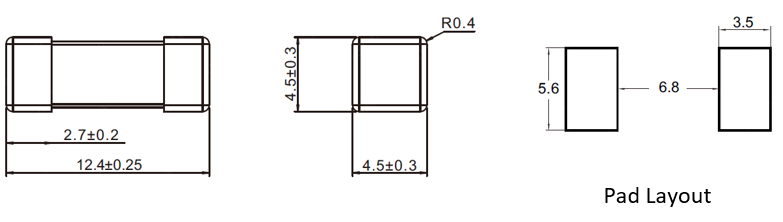

Dimensions(mm)
Catalogue Numbers
Series | Part No. | Rated Current(A) | Rated Voltage(V) Breaking Capacity | Typical Cold | Typical | |
HVH2 | 1245FF | 1245FF.15 | 15 | 250V @ 200A | 3.300 | 366.000 |
1245FF.20 | 20 | 2.500 | 630.000 | |||
1245FF.25 | 25 | 1.800 | 850.000 | |||
1245FF.30 | 30 | 1.550 | 1300.000 | |||
1245FF.40 | 40 | 1.300 | 1750.000 | |||
1245FF.50 | 50 | 1.050 | 2900.000 | |||
1245FF.60 | 60 | 0.755 | 3450.000 | |||
*1245FF.70 | *70 | 72V @ 1000A | 0.620 | 4600.000 | ||
*1245FF.80 | *80 | 0.550 | 5200.000 | |||
*1245FF.100 | *100 | 0.400 | 7900.000 | |||
